750VA/360W 1*12V7.2AH

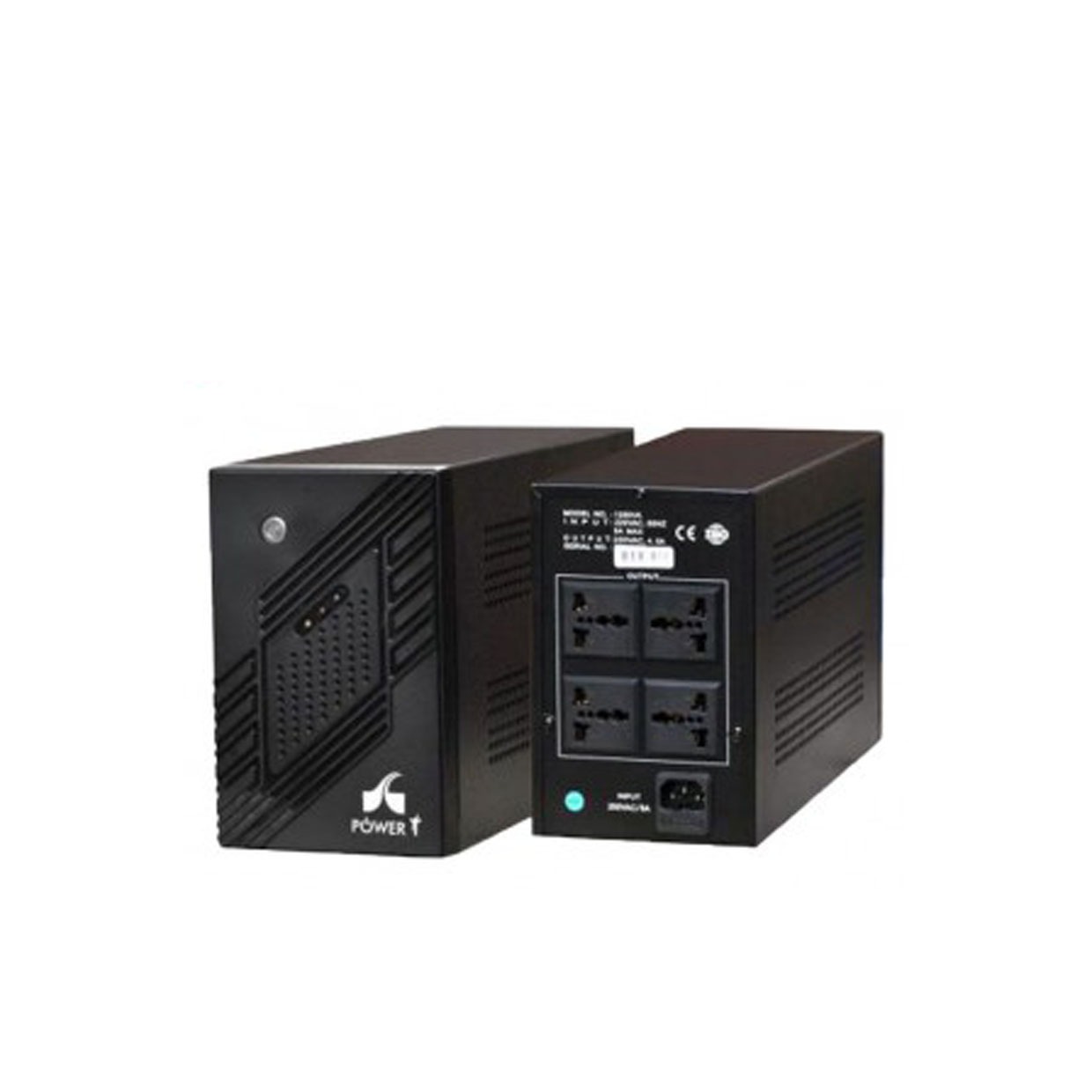

POWER T UPS YW-750VA-4 750VA/360W 1*12V7.2AH

POWER T UPS YW-1250VA-4 1250VA/720W 2*12V7.2AH

1KVA/1000W 2*12V7.2AH

POWER T UPS 1KVA 2 BATTREY 700W

2KVA/1600W 6*12V7.2AH

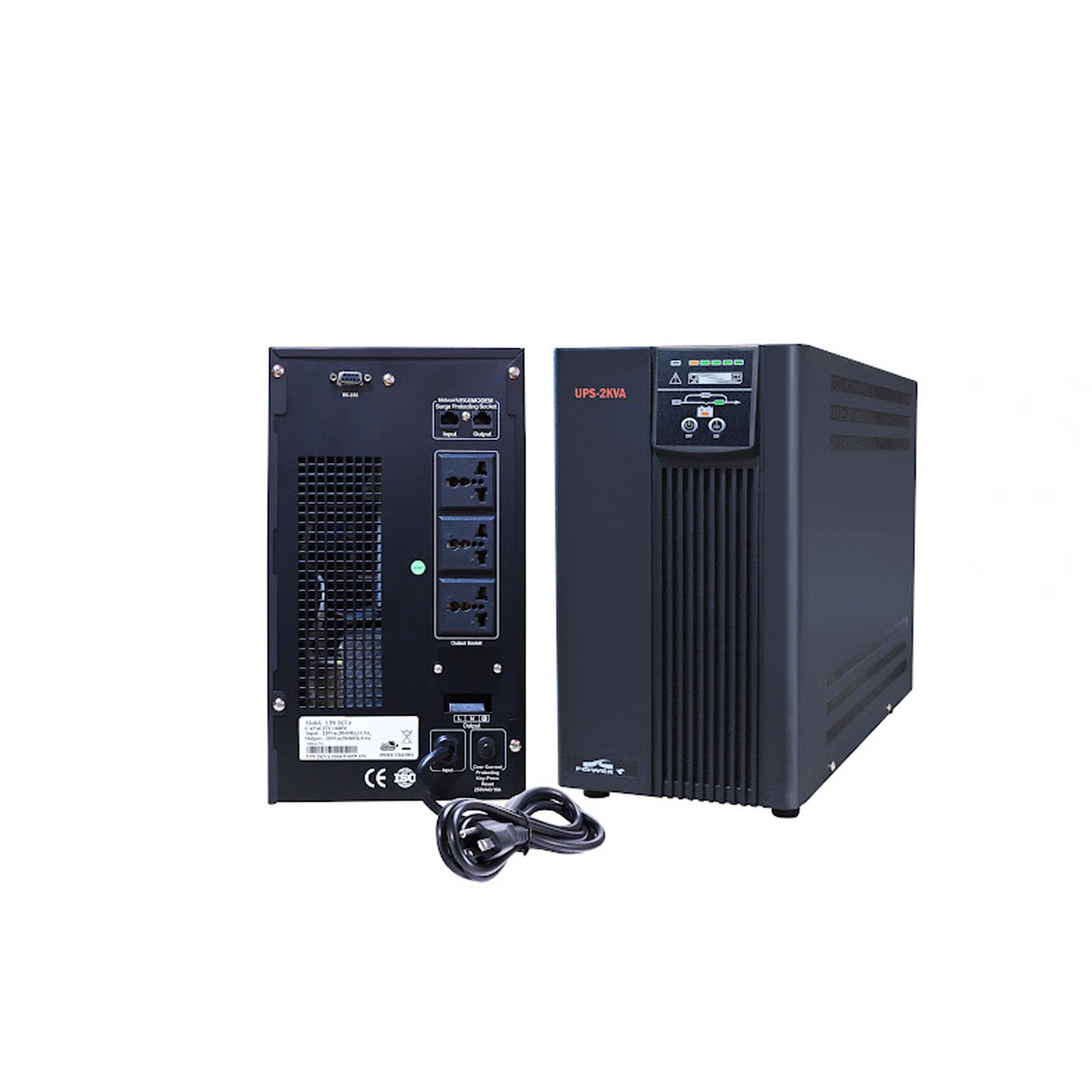

POWER T UPS 2KVA 6 BATTREY 1400W

3KVA/2400W 6*12V7.2AH

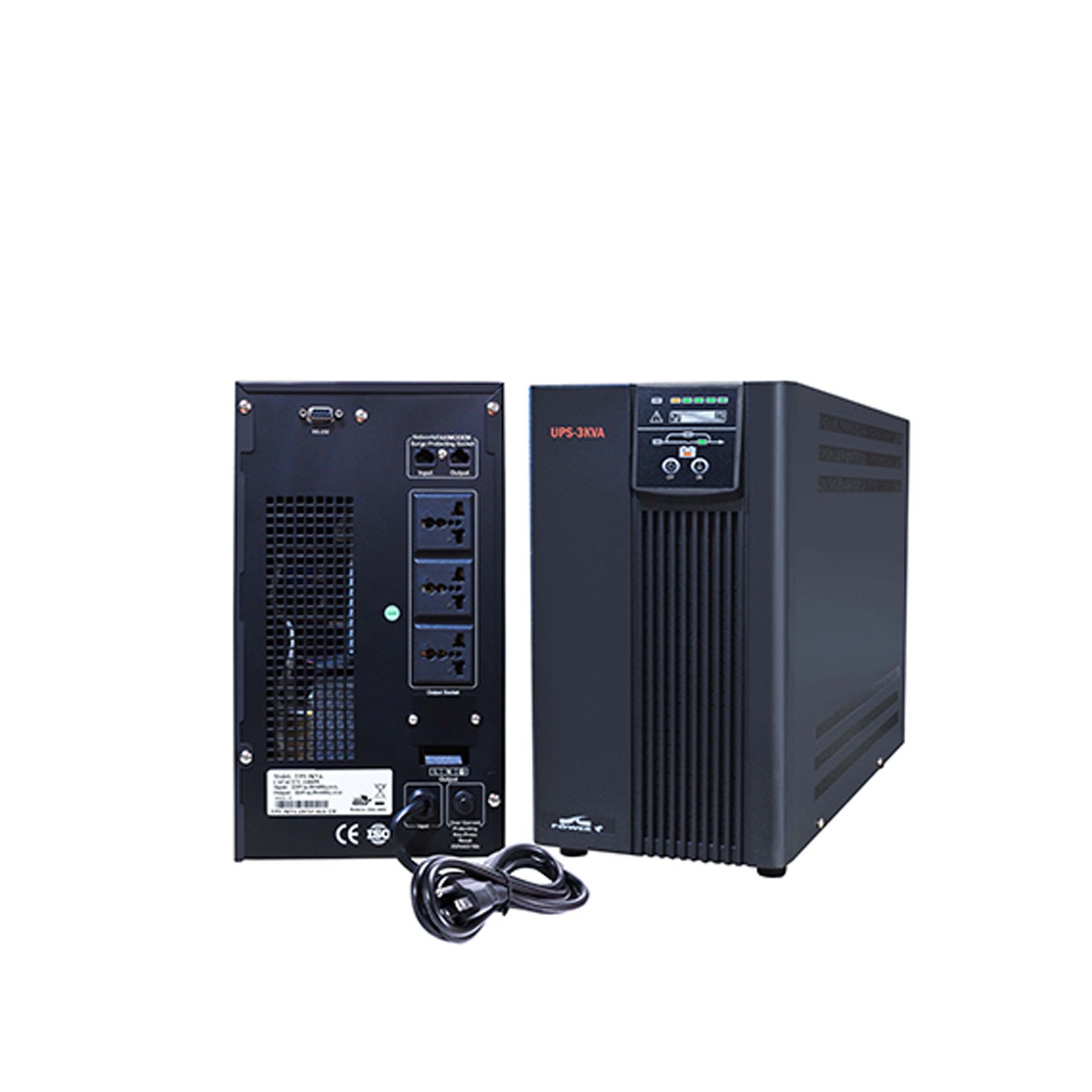

POWER T UPS 3KVA 6 BATTREY 2100W

6KVA/4800W 14*12V7 .2AH

POWER T UPS 6KVA 16 BATTREY 4800W

Power T 10KVA UPS Online  16 Battery 10000W

•  Part Number: PRO801ERS
•  GENERAL
•  UPS Type: Rack / Tower
•  Phase: Single phase with ground
•  Rating (VA): 1000
•  Nominal Power (W): 900
•  Dimension (mm): 410 x 438 x 88 [2U] (D x W x H)
•  Weight (kg): 11.6 Kg
•  INPUT
•  Connection Type: IEC 320-C14
•  Nominal Voltage: 200/208/220/230/240 VAC
•  Voltage Range: 55-150 VAC ± 5%, 110-300 VAC ± 5%
•  Frequency Range: 40Hz ~ 70Hz
•  Power Factor: ≧0.99
•  OUTPUT
•  Connection Type: 8 x IEC 320-C13
•  Nominal Voltage: 200/208/220/230/240 VAC
•  Voltage Regulation: ±1%
•  Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
•  Frequency Range (Batt. Mode): 50 Hz ± 0.5% or 60Hz ± 0.5%
•  Current Crest Ratio: 5:1 (max.)
•  Harmonic Distortion: ≦2% THD (Linear load), ≦4% THD (Non-linear load)
•  ALARM & INDICATORS
•  Battery Mode: Sounding every 4 seconds
•  Low Battery: Sounding every second
•  Overload: Sounding twice every second
•  Fault: Continuously sounding
•  LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
•  CONNECTIVITY, CONTROL & MONITORING
•  Front panel: Status LED, Function keys, LCD display
•  Communication: Smart RS232*, USB Port, Emergency Power Off (EPO)
•  BATTERY
•  Type: 12V / 9Ah
•  Numbers: 2
•  Typical Recharge Time: 4 hours recover to 90% capacity
•  REAR PANEL
•  1. Programmable outlets: connect to non-critical loads
•  2. Output receptacles: connect to mission-critical loads
•  3. AC input
•  4. Input circuit breaker
•  5. Network/Fax/Modem surge protection
•  6. Emergency power off function connector (EPO)
•  7. USB communication port
•  8. RS-232 communication port
•  9. Intelligent slot
•  10. External battery connection
•  11. Cooling fan

•  Part Number: PRO903ERS
•  GENERAL
•  UPS Type:  Rack / Tower
•  Phase Single :phase with ground
•  Rating (VA) : 3000
•  Nominal Power :(W) 2700
•  Standard Model
•  Dimension (mm): 630 x 438 x 88 [2U] (D x W x H)
•  Weight (kg) : 29.3
•  Long-run Model
•  Dimension (mm): 410 x 438 x 88 [2U] (D x W x H)
•  Weight (kg): 14.2
•  INPUT
•  Connection Type : IEC 320-C20
•  Nominal Voltage : 200/208/220/230/240 VAC
•  Voltage Range : 110-300 VAC (Load at 50%)
•  160-280 VAC (Load at 100%)
•  Frequency Range : 40 ~ 70 Hz
•  Power Factor : ≥ 0.99
•  OUTPUT
•  Connection Type : 6 x IEC 320-C13
•  1 x IEC 320-C19
•  Nominal Voltage : 200/208/220/230/240 VAC
•  Voltage Regulation : ±1%
•  Frequency Range (Synchronized Range) : 47 ~ 53 Hz or 57 ~ 63 Hz
•  Frequency Range (Batt. Mode) : 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
•  Current Crest Ratio : 3:1
•  Harmonic Distortion : ≤3% THD (Linear load)
•  ≤6% THD (Non-linear load)
•  ALARM & INDICATORS
•  Battery Mode : Sounding every 4 seconds
•  Low Battery : Sounding every second
•  Overload : Sounding twice every second
•  Fault : Continuously sounding
•  LCD : Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
•  CONNECTIVITY, CONTROL & MONITORING
•  Front panel : Status LED, Function keys, LCD display
•  Communication : Smart RS232* , USB Port
•  BATTERY
•  Standard Model
•  Type: 12V / 9Ah
•  Numbers : 6
•  Typical Recharge Time : 4 hours recover to 90% capacity
•  Long-run Model Type : Depending on the capacity of external batteries
•  Number : 6
•  Charging Current (max) : 1A / 2A / 4A / 6A Adjustable
•  REAR PANEL
•  1. AC Input
•  2. Input circuit breaker
•  3. USB Communication port
•  4. RS-232 communication port
•  5. Intelligent slot
•  6. External battery connection (Only available for L model)
•  7. Output receptacles (IEC C13)
•  8. Output receptacles (Universal outlet)
•  9. Output receptacle (IEC C19)

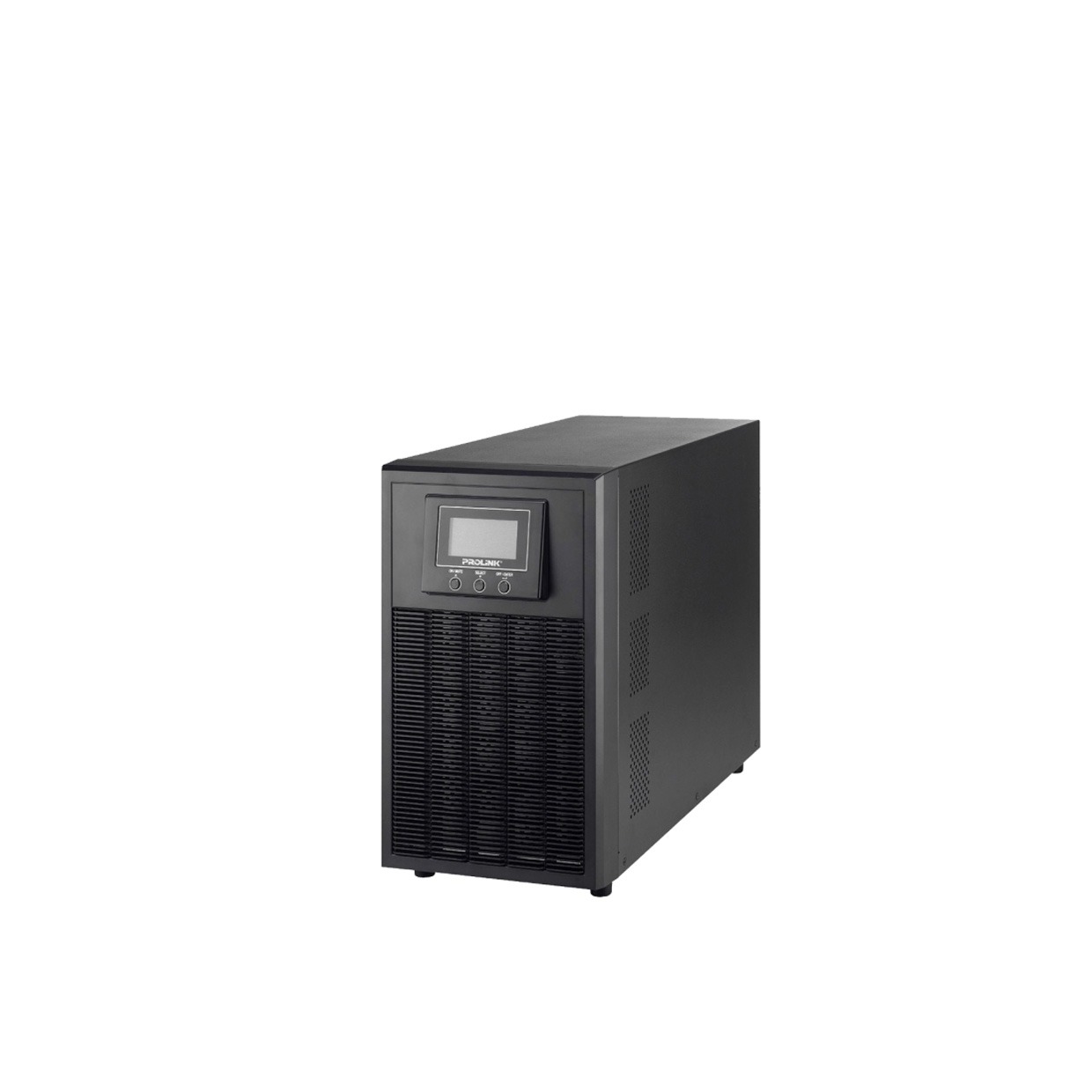

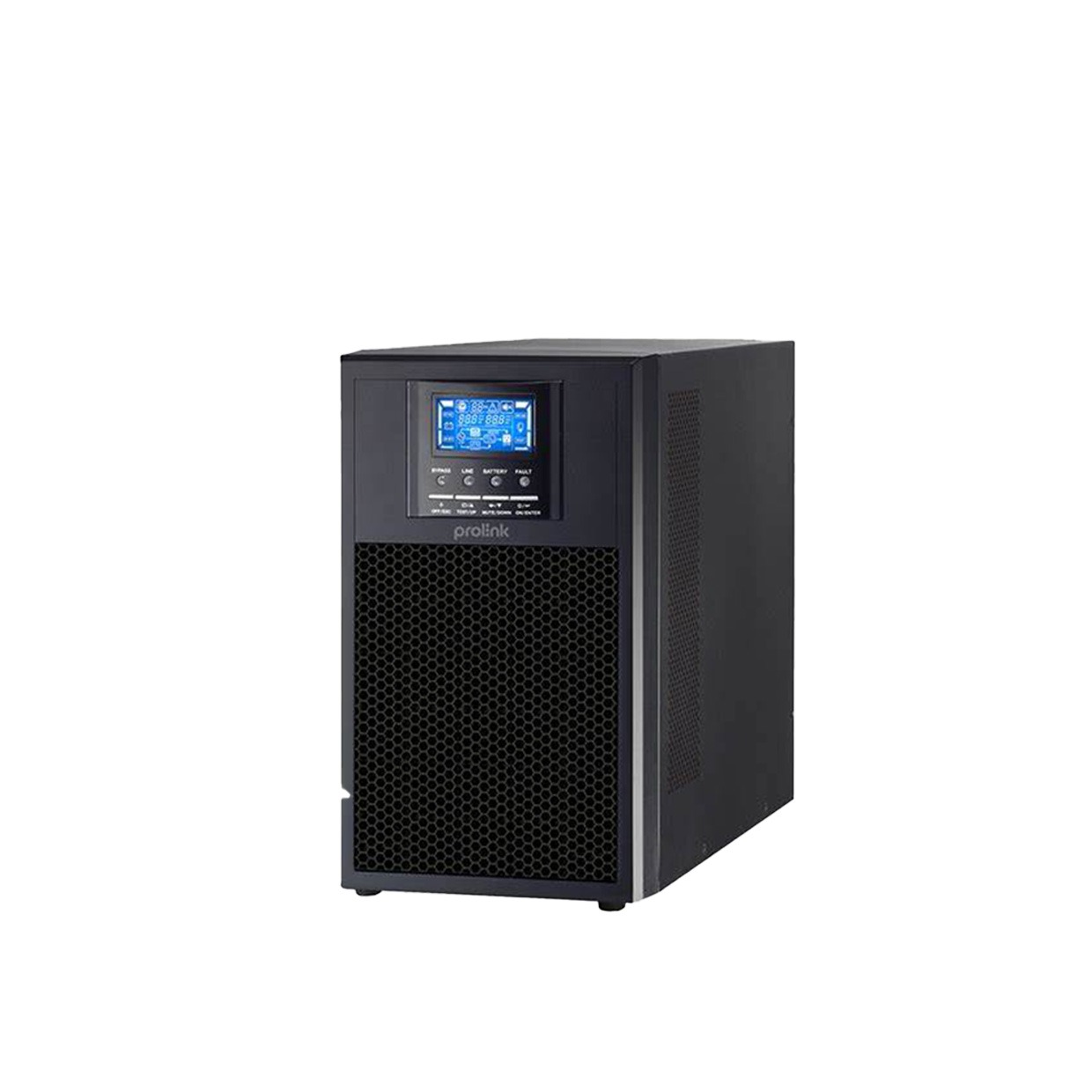

UP-902ES
-Capacity: 2KVA: 2000VA / 1800W
-Battery: 9AHx4
-UPS type: Tower
-Input phase: Single phase with ground
-Front panel: Status LED, function keys, LCD display
-Communication: Communication
-LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault indicators
-Warranty: 2 Years

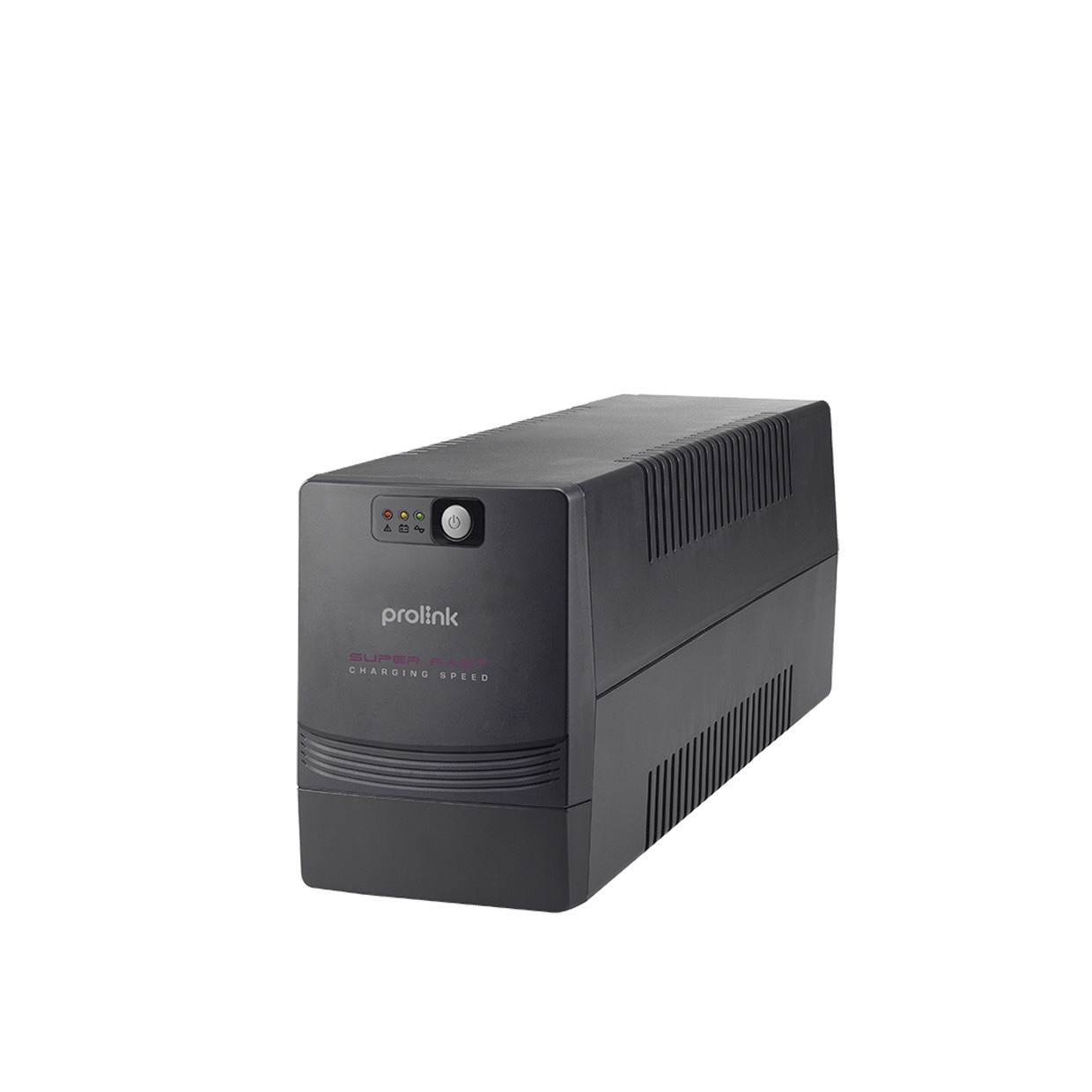

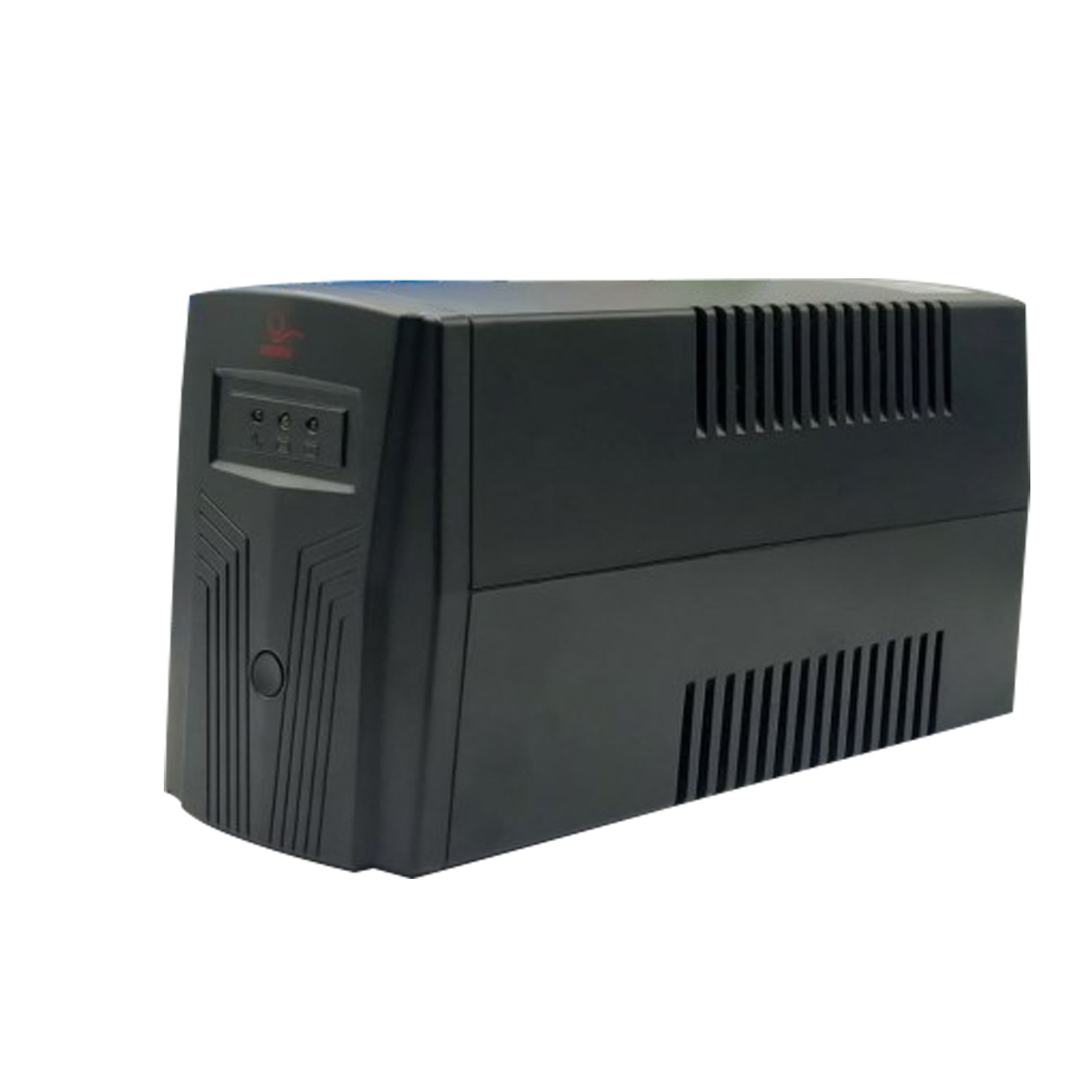

- Capacity: 750VA (390W)
- Voltage: 220V (162 ~ 295 Vac)
- Frequency: 50 / 60 Hz ± 1%
- Transfer time: 2 ~ 7 ms
- Battery: 1x12V/8.2AH
- Recharge time: 6 ~ 8 h
- Protections:
Short circuit Overcharge, Overload

- Capacity: 750VA (390W)
- Voltage: 220V (162 ~ 295 Vac)
- Frequency: 50 / 60 Hz ± 1%
- Transfer time: 2 ~ 7 ms
- Battery: 1x12V/8.2AH
- Recharge time: 6 ~ 8 h
- Protections:
Short circuit Overcharge, Overload

Capacity: 1250VA (720W)
- Voltage: 220V (162 ~ 295 Vac)
- Frequency: 50 / 60 Hz ± 1%
- Transfer time: 2 ~ 7 ms
- Battery: 2x12V/8.2AH
- Recharge time: 6 ~ 8 h
- Protections:
Short circuit Overcharge, Overload

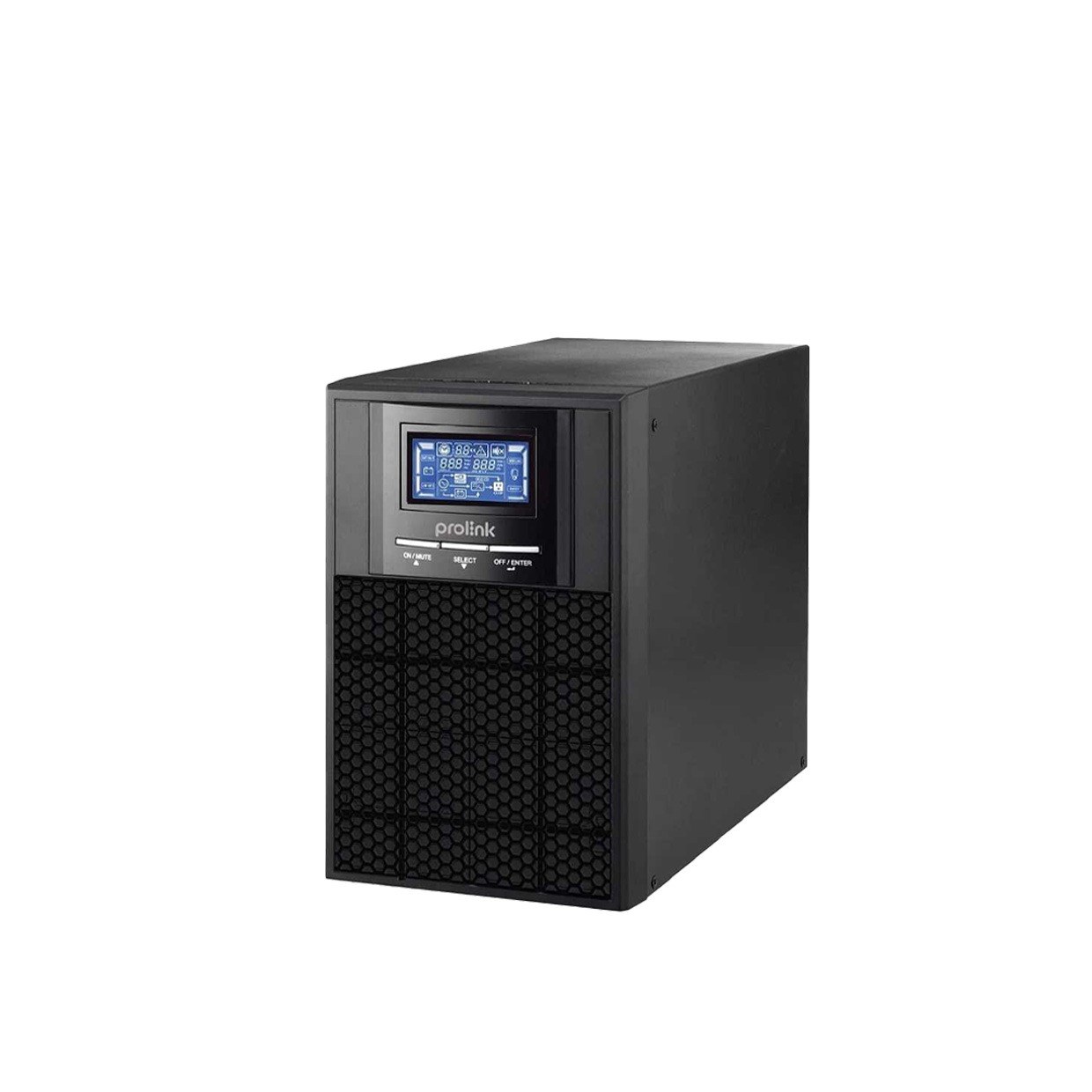

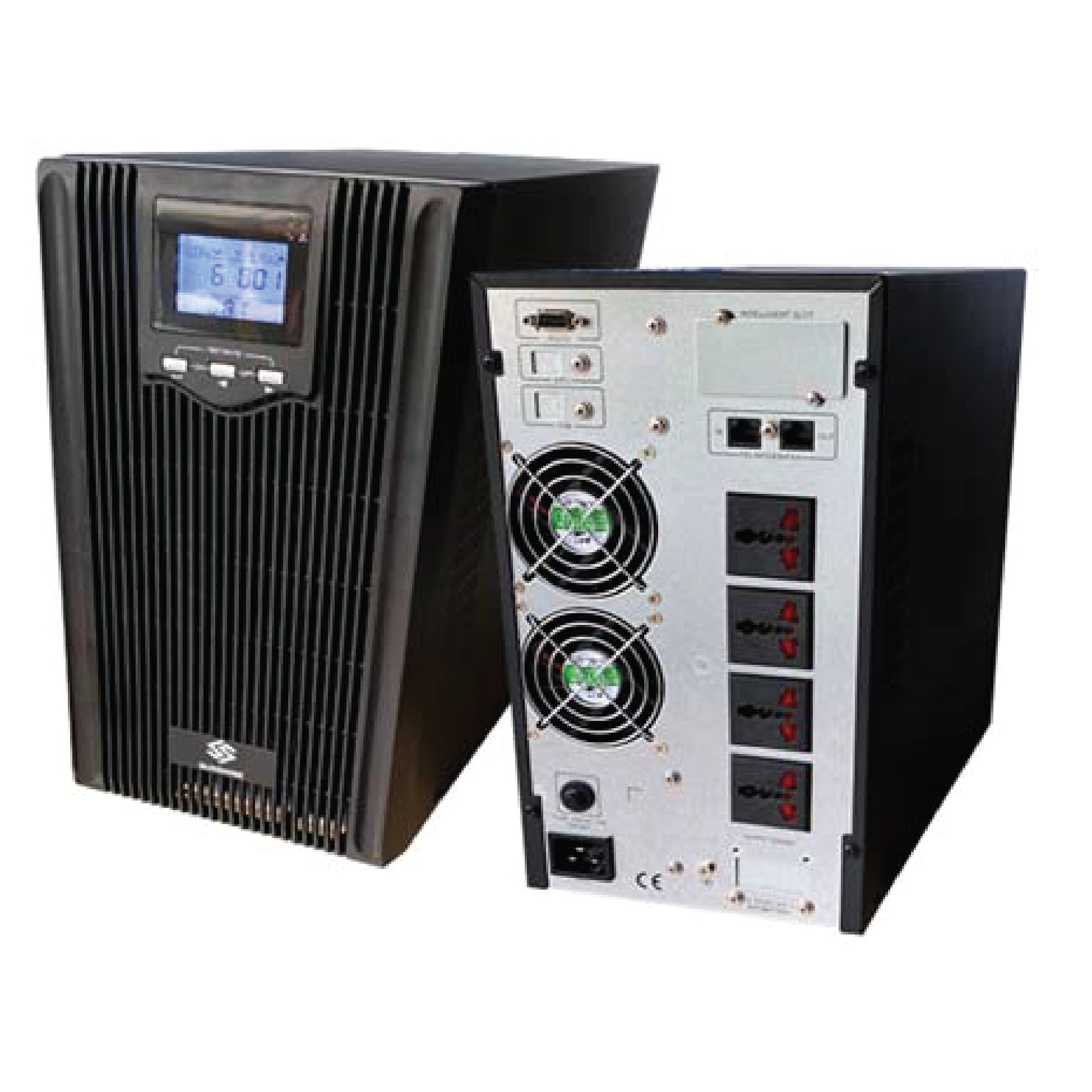

- Capacity: 2KVA (1800W)
- Display: LCD + LED
- Voltage: 220V (176 ~ 280 Vac)
- Frequency: 40~70Hz (auto-sense)
- Power factor: 0.9
- Transfer time: 0 ms
- Battery: 6x12V/8.2AH
- Recharge time: 90% in 3 hours

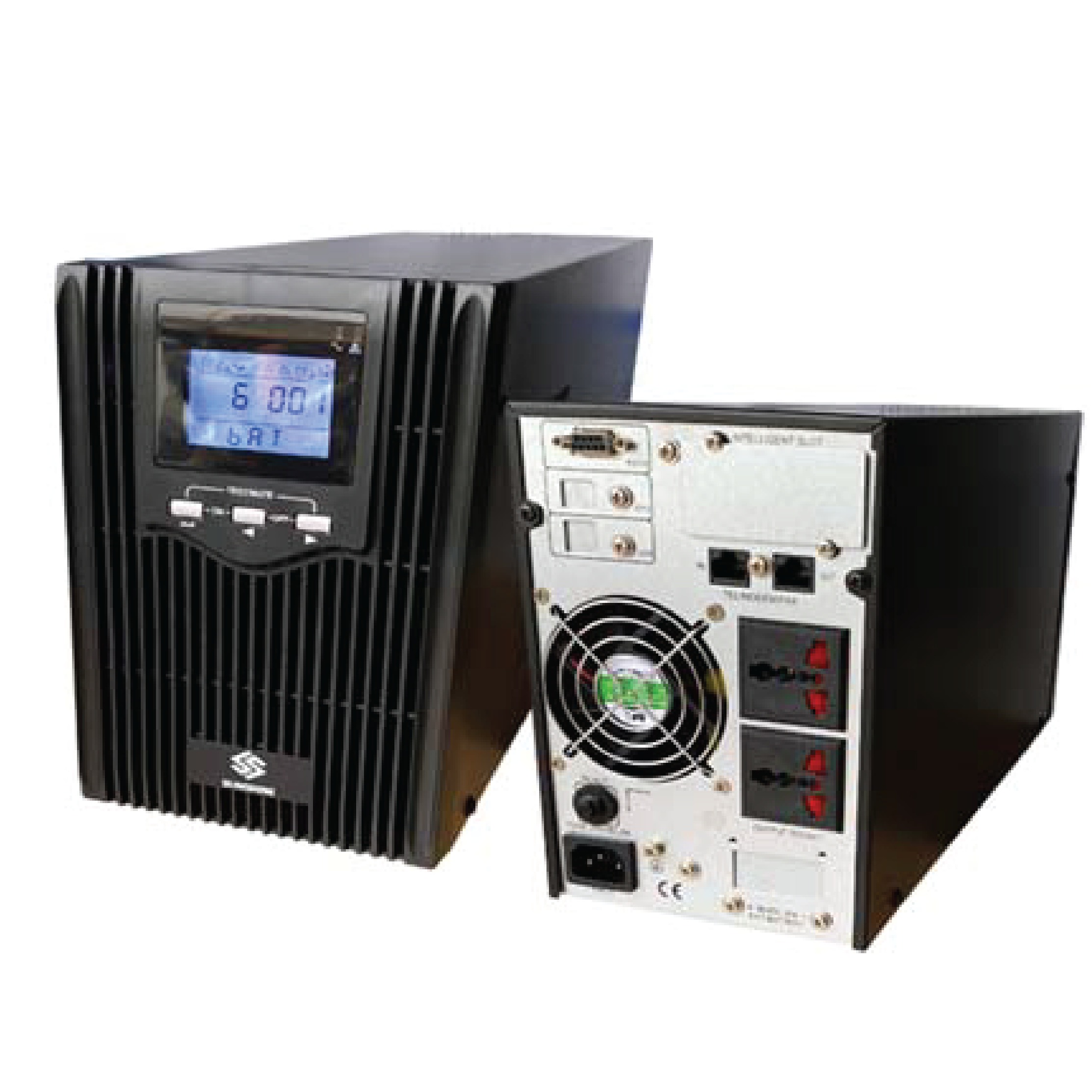

- Capacity: 1KVA (900W)
- Display: LCD + LED
- Voltage: 220V (176 ~ 280 Vac)
- Frequency: 40~70Hz (auto-sense)
- Power factor: 0.9
- Transfer time: 0 ms
- Battery: 3x12V/8.2AH
- Recharge time: 90% in 3 hours

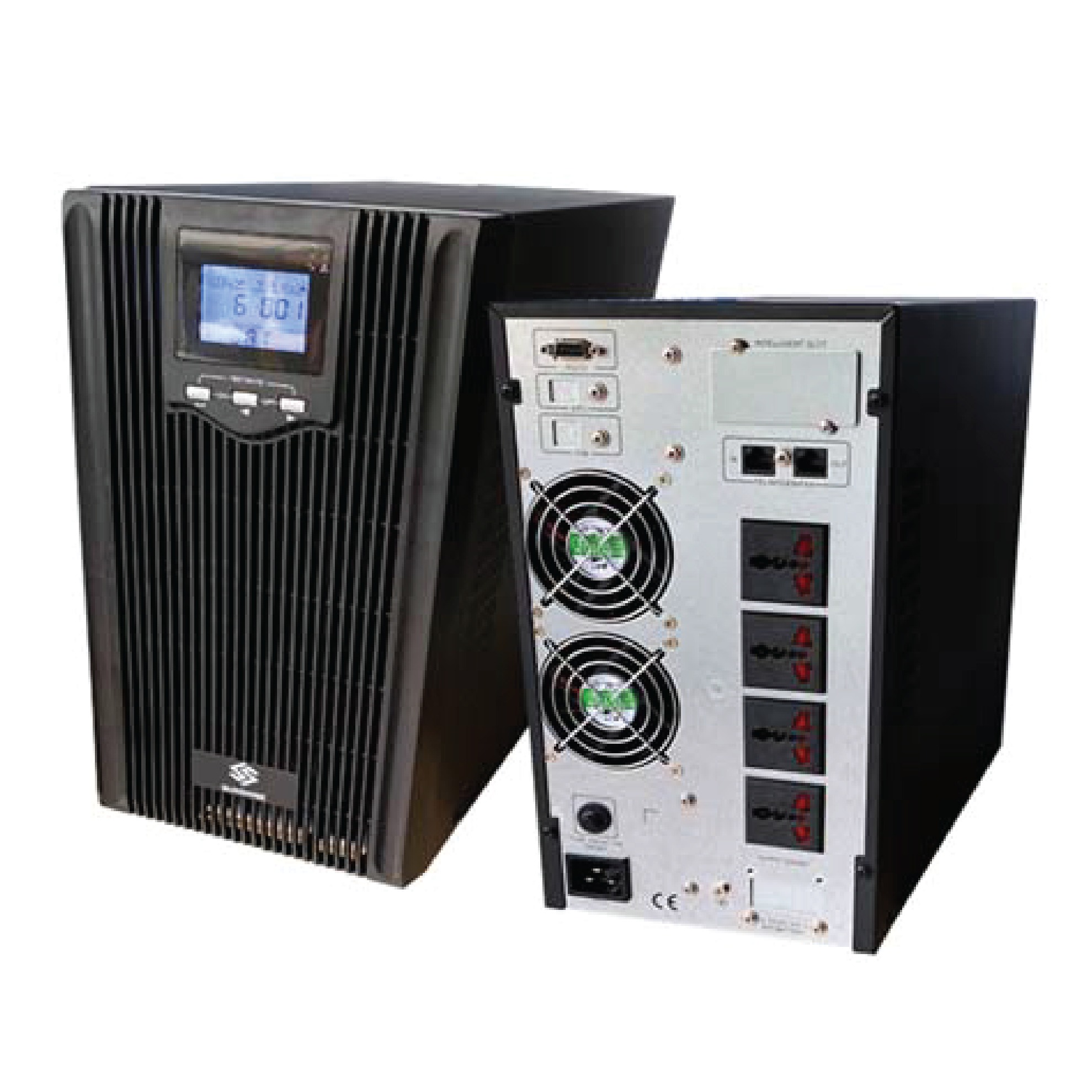

- Capacity: 3KVA (2700W)
- Display: LCD + LED
- Voltage: 220V (176 ~ 280 Vac)
- Frequency: 40~70Hz (auto-sense)
- Power factor: 0.9
- Transfer time: 0 ms
- Battery: 8x12V/8.2AH
- Recharge time: 90% in 3 hours

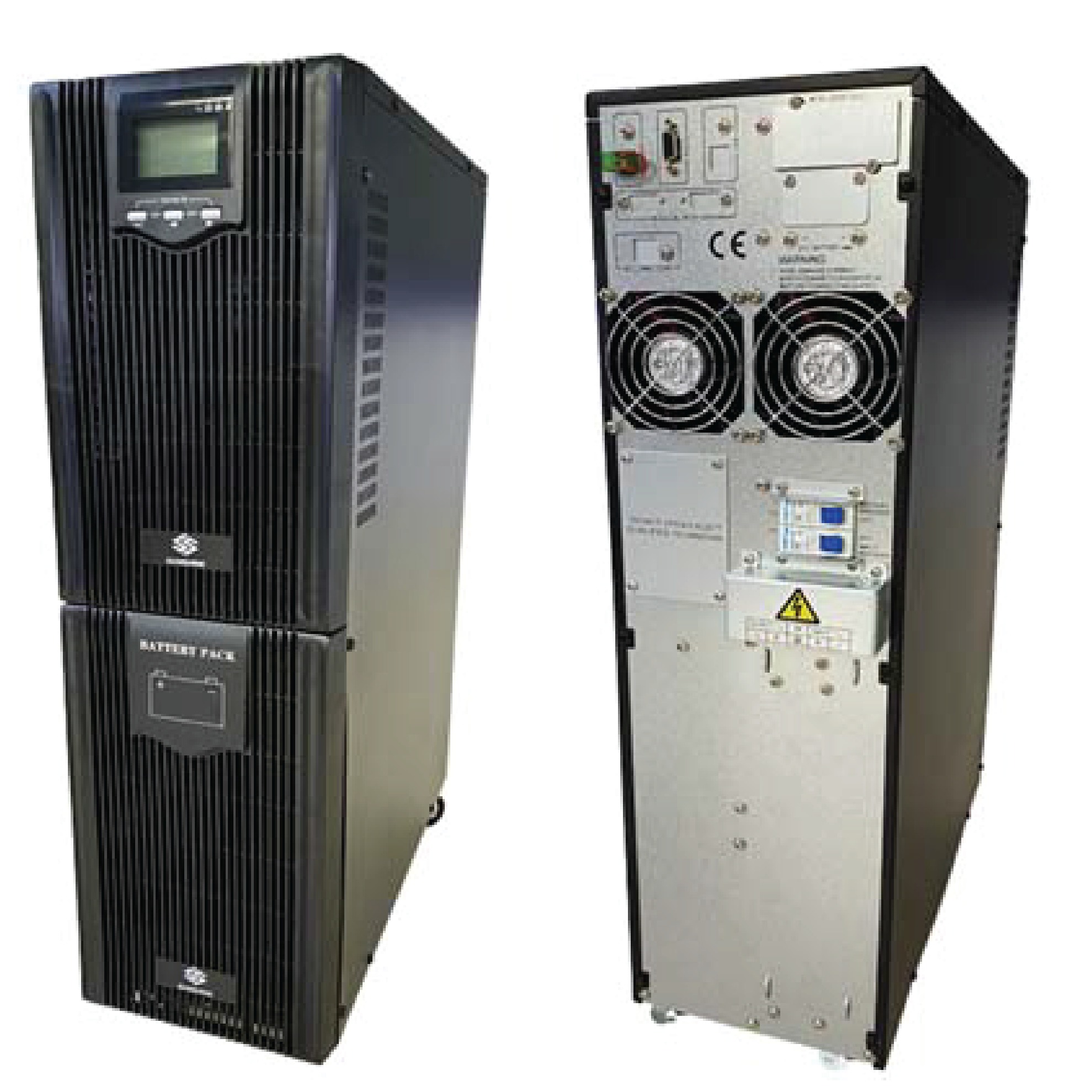

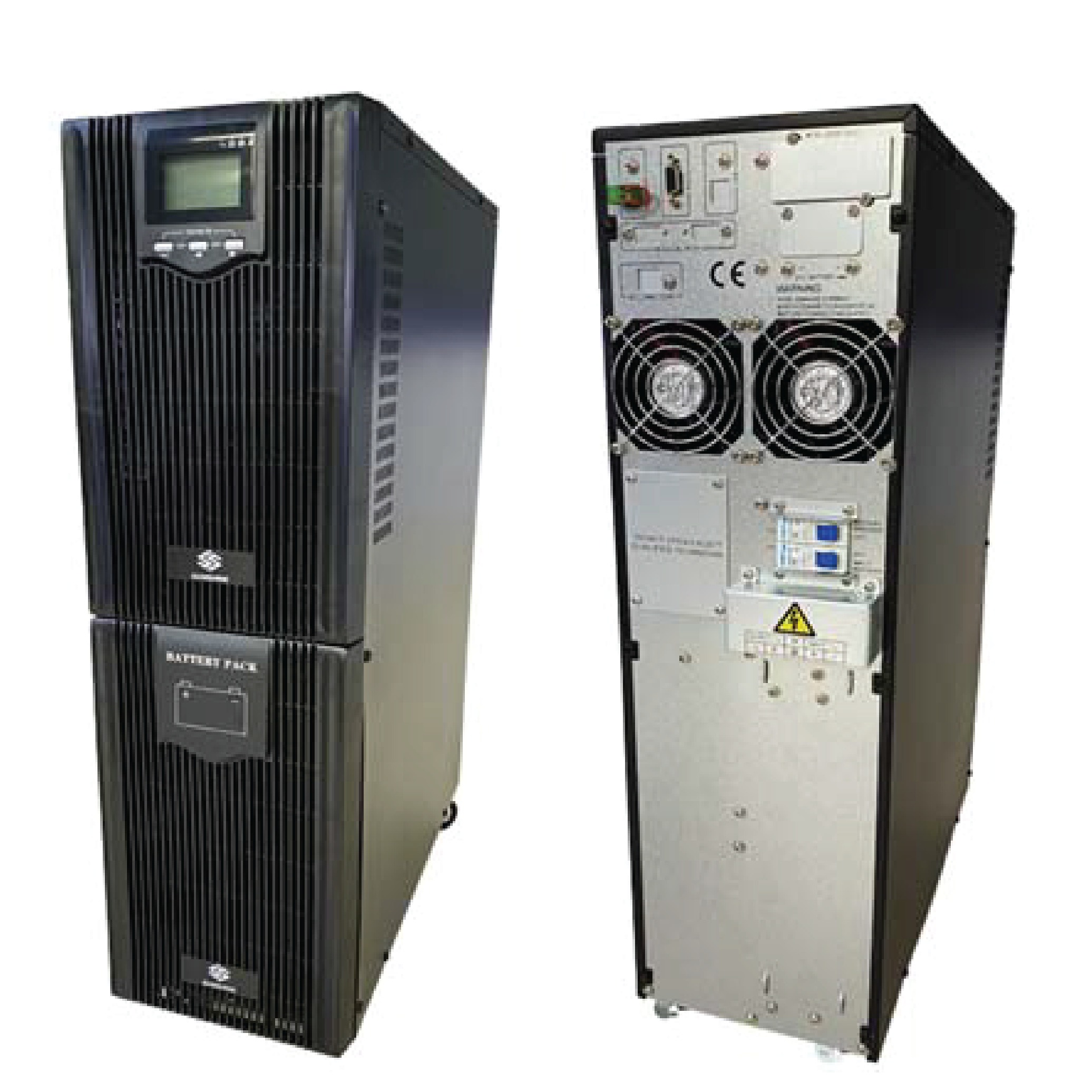

- Capacity: 6KVA (5400W)
- Display: LCD + LED
- Voltage: 220V (176 ~ 280 Vac)
- Frequency: 40~70Hz (auto-sense)
- Power factor: 0.9
- Transfer time: 0 ms
- Battery: 20x12V/8.2AH
- Recharge time: 90% in 4 hours

- Capacity: 10KVA (9000W)
- Display: LCD + LED
- Voltage: 220V (176 ~ 280 Vac)
- Frequency: 40~70Hz (auto-sense)
- Power factor: 0.9
- Transfer time: 0 ms
- Battery: 20x12V/9AH
- Recharge time: 90% in 4 hours

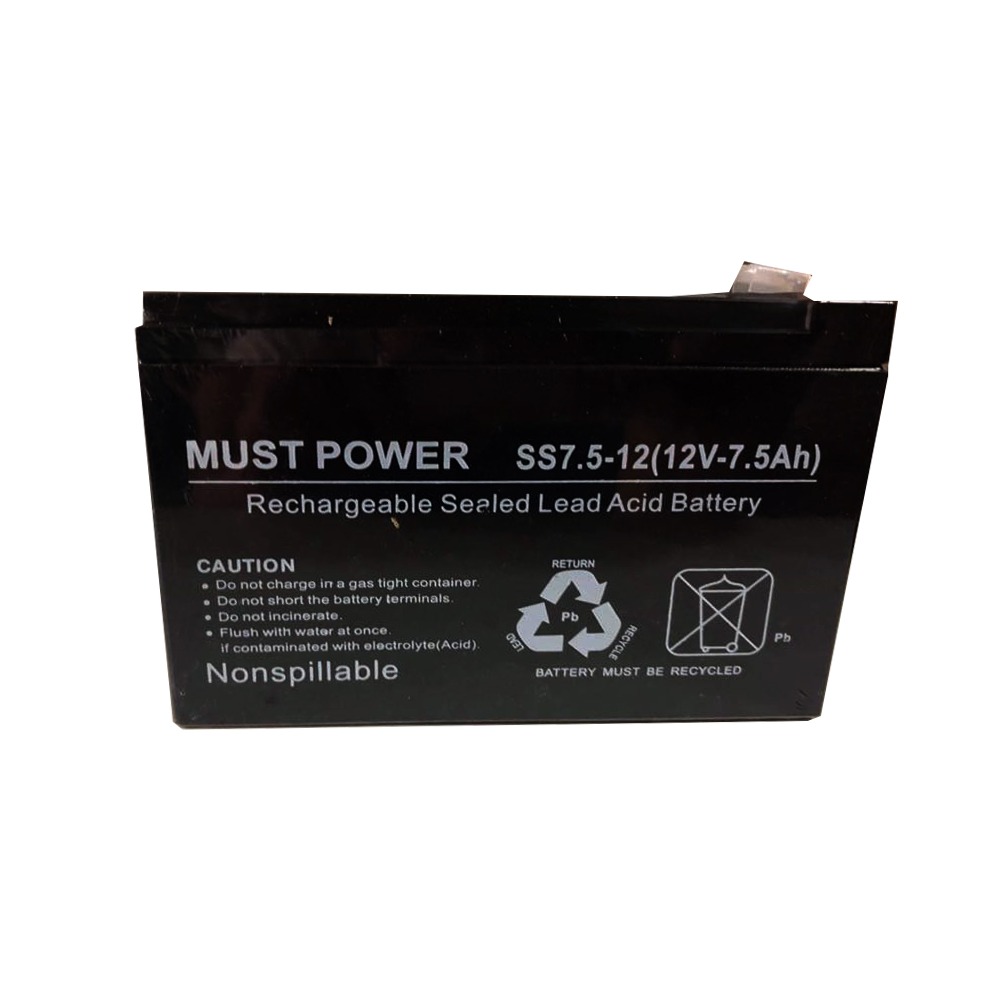

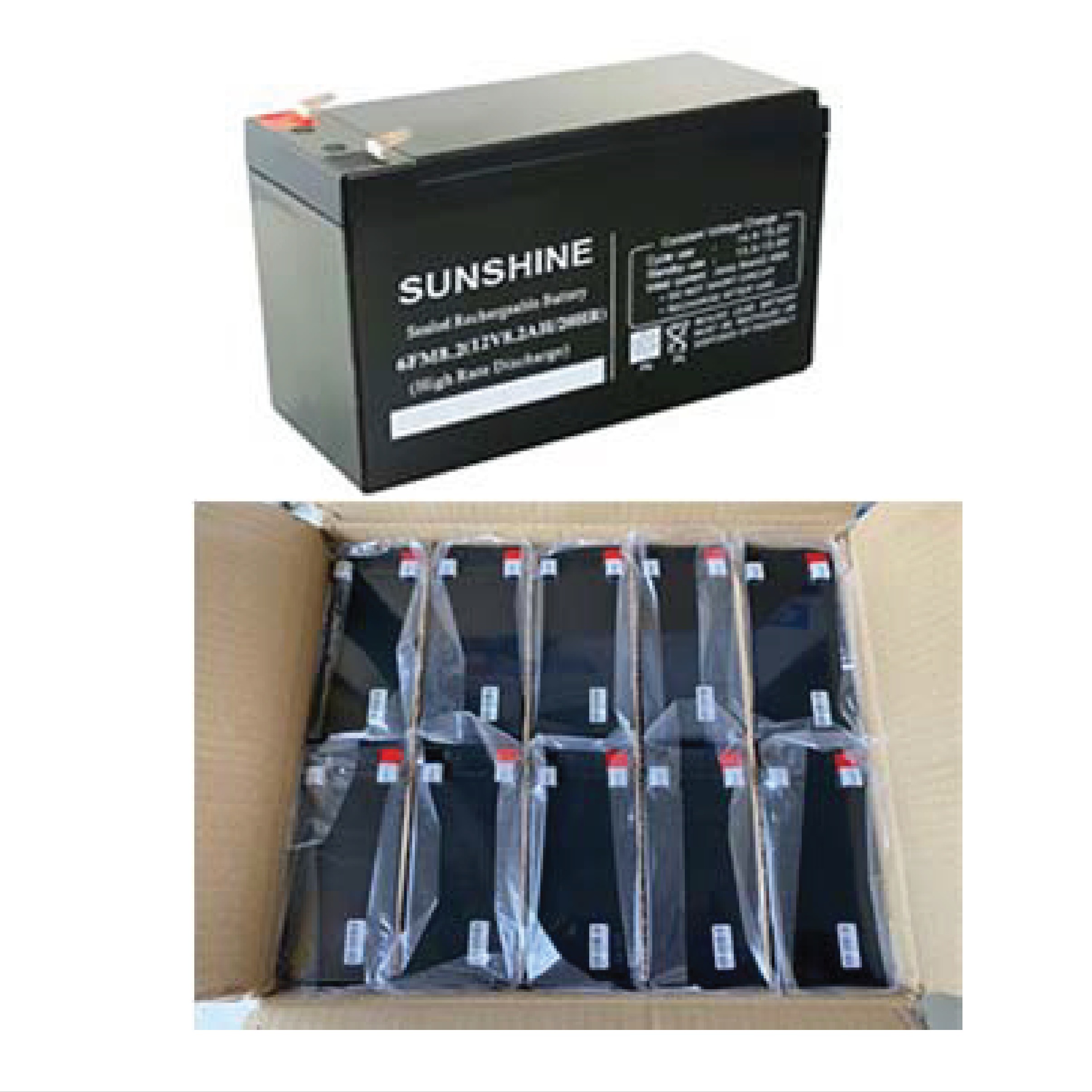

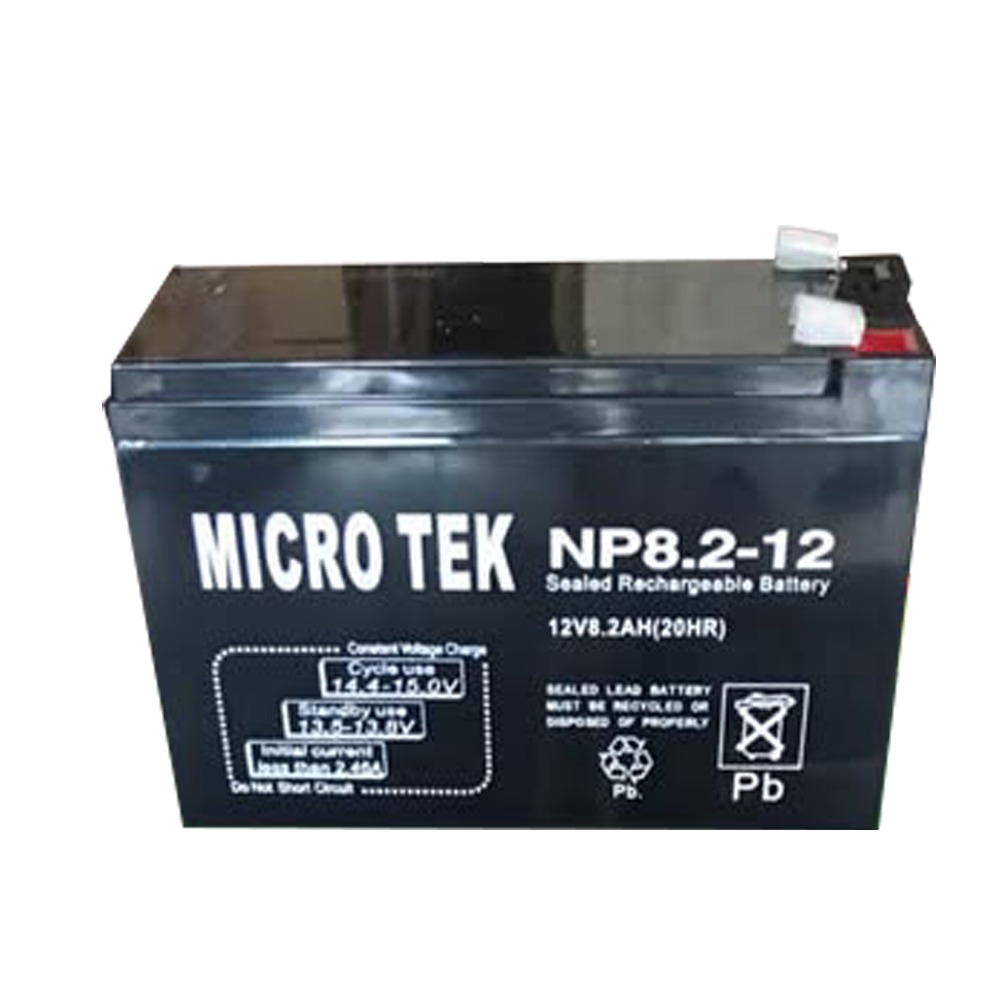

- Sealed Lead-
- Capacity: 12V
- For Standard
- Maintenance-
- Low Self Disc
- Weight: 2.1kg
